SPMXSE40

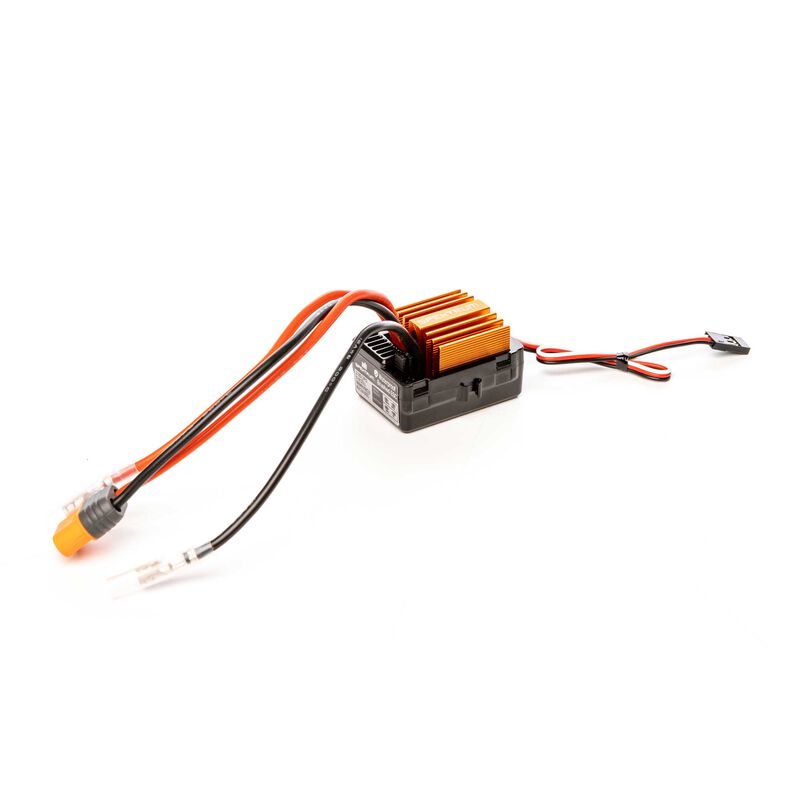

The Spektrum Firma 40 amp Brushed Smart ESC is waterproof and ready to use in most 1/10th scale RC models. Featuring programming options that make it easy to tune for your on-road and off-road racers, scalers, crawlers, and bashers.
- SMART LITE: INTEGRATED SMART TECHNOLOGY
- WATERPROOF: Designed and built to operate in “wet condition” such as puddles, creeks, and snow*
- PROGRAM VIA TRANSMITTER: Proprietary Text Gen Programming Allows for programming the esc from Transmitter
In The Box
- (1) Spektrum Firma 40A Brushed Smart ESC
- (2) Light Strings (red and white)
- (1) Product Manual
Needed to Complete
- (1) Spektrum™ Surface Receiver
- (1) 540 – 550 size Brushed motor
- (1) 2S or 3S Lipo Battery with EC3 or IC3 Connector
- (1) Spektrum Transmitter
Features
- Smart all-in-one telemetry
- Smart Lite functionality
- Provides Spektrum Smart ESC data such as input voltage, esc temperature, esc amperage, RPM, and Text Gen Telemetry data over one wire. No additional sensors required. Smart Lite ESCs do not provide Smart Battery data.
- Integrated LED light power outputs for simple installation without the need of additional receiver ports
- Includes 2 LED Light Strings (Red and White)
- 40 Amp continuous power – ideal for 1/10 scale crawlers and scalers
- 2S-3S LiPo Compatible
- Waterproof ESC*
- Multiple options for easy programming:
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Programming from Transmitter via Text Gen Telemetry
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
- Compact for easy installation in most applications
- Ready to install — no soldering required
- Aluminum heat sink for high efficiency
- Adjustable high-power BEC (6V or 7.4V, 4amp)
- Firmware updatable through the Smart ESC Programming Box
- High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
- Limited 1-year warranty
Overview
The Spektrum Firma 40 amp Brushed Smart ESC is waterproof and ready to use in most 1/10th scale RC models. Featuring programming options that make it easy to tune for your on-road and off-road racers, scalers, crawlers, and bashers.
Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
vWith Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as motor current, temperature, battery voltage and capacity.
Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
| Programmable | Yes |
| Product Width | 1.18" (30 mm) |
| Technology | Smart |
| Connector Type | 4mm Bullet,IC3 |
| Auto Cutoff | Yes |
| BEC Continous Current | 4A (Shared Between Receiver and Aux Light Outputs) |
| Product Length | 1.41" (36 mm) |
| Low-Voltage Cutoff Programmable | Yes |
| Product Weight | 1.69 oz (48 g) |
| Maximum Burst Current | 160A |
| Water-Resistant | Yes |
| Maximum Continuous Current | 40A |
| Motor Type | Brushed |
| Amperage | 40A |
| Turns | Below 8.4V; Down to 12T / Below 12.6V; Down to 35T |
| BEC | Yes |
| BEC Voltage | 6V / 7.4V User Selectable |
| Input Voltage | 2–3 Cell Li-Po / Li-Fe; 5–9 Cell Ni-MH / Ni-Cd |
| Motor Limit | 540 / 550 Size Motors |
| Product Height | 0.71" (18 mm) |
| Reverse | Yes |
| Forward | Yes |
