Product Code: DYNS0900
Overview

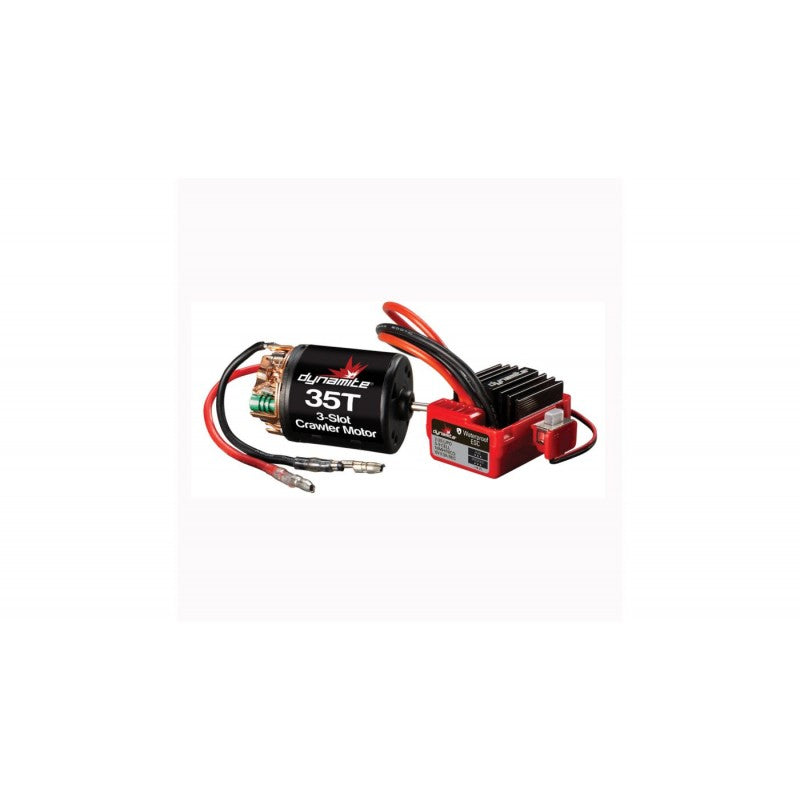

This Dynamite® brushed crawler motor/ESC combo offers price sensitive enthusiasts the perfect arrangement for their crawlers. Additionally, the system is a great completion item for both kits and rollers. The combo includes a powerful, rebuildable 540 size 35 turn motor and a waterproof, NiMH/LiPo compatible, brushed ESC offering forward/brake/reverse, forward/brake and crawler drive modes. Additionally, it features "On the Fly" adjustable drag brakes with specific 3 channel radios. Its compatibility makes it an ideal replacement ESC or the perfect upgrade to your current non-LiPo, non-waterproof, or limited motor spec ESC. As with all Dynamite power systems, motors and ESC's are available separately.
Adjustable Timing: | Yes |
BEC: | Yes |
BEC Continous Current: | 6V/3A |
BEC Type: | Shared between receiver, auxillary light ioutput and cooling fan |
BEC Voltage: | 6V |
Battery Connector: | IC3 |
Bearings or Bushings: | Rubber sealed ball bearings |
Brakes: | Electronic |
Cells: | 2S - 3S LiPo, 6 - 9 cell NiMH |
Connector Type: | 3.5mm Tamiya style bullet |
Forward: | Yes |
Height: | ESC 0.71" (18mm) |
Input Voltage: | 7.2 - 11.1V |
Length: | ESC 1.40" (35.6mm) |
Motor Connector: | 3.5mm Bullet |
Motor Type: | Brushed 3-slot rotor, open endbell for 1:10 scale rock crawlers |
Overall Diameter: | 1.4" (36mm) |
Overall Length: | 2.1" (53mm) |
Reverse: | Yes |
Sensored: | No |
Shaft Diameter: | 1/8" (3.2mm) |
Size: | Motor 2.1 x 1.4" (53 x 36mm) |
Turns: | 35T |
Type: | 1/10 scale crawler |
Weight: | 6oz (169g),ESC 1.41oz (40g) with wires |
Width: | ESC 1.34" (24mm) |
