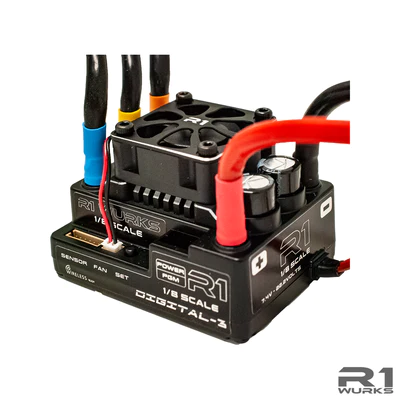

R1 Digital 3 1/8 Scale ESC

R1 Digital 3 1/8 Scale ESC

SKU: R1040018

Regular price
Sale price
Regular price
Enquire for Availability
Unit price
Tax included. Shipping calculated at checkout.

New from R1 Motor lab is the 1/8 Scale Digital-3 Wireless* programmable brushless speed controller. Developed using the most advanced MICROCHIP processor and a robust proprietary software, the 1/8 Scale Digital-3 delivers the most technologically advanced features to date. Development of the 1/8 Digital-3 was focused on ultra smooth power delivery needed for competition level racing as well as supreme power efficiency. Compatible with use of up to a 6S Lipo Battery that allows for more power output. The controller offers the most advanced throttle and brake features to suit a wide range of driving styles. The unit features an A.C.L.C. (Advanced Component Level Cooling) system. This design allows individual encapsulated low resistance Mosfets (inner & outer components) to transfer heat directly to the upper heat sink. The system also comes equipped with an all new advanced commutation algorithm called COOL POWER to keep the motor cool and deliver powerful, yet ultra smooth acceleration. The 1/8 Scale Digital-3 is secured with case minimizing overall weight. We have minimized the weight from the upper case while improving heat dissipation, achieved by improving air velocity exits from all sides of the ESC case. All adjustable settings are easily programmed using the R1 WIRELESS ADAPTOR coupled with an iOS or Android app designed with an intuitive, easy to use interface. The new R1 Digital 3 app also features a super fast Live Telemetry and a built in Data logger for after race analysis. Built in Amp draw meter for setting motor timing or for after race analysis. Using our new over the air updates feature, firmware updates are now easily downloaded through our iOS or Android apps.

  • Full compatibility with competition level 1/8 scale racing
  • Superlative FET and low-resistance power PCB design
  • Cool Power software/hardware upgrades increase speed while reducing motor temperature by modifying the commutation algorithm
  • New Auto Turbo / Boost timing setting and delay time setting
  • New X-Lock brake response mode and PWM / brake frequency allows various race and control types
  • Data port for connecting to Wireless adaptor
  • Wireless adaptor allows program parameter settings and firmware upgrades
  • LIVE ESC and motor telemetry (speed, temperature, current, voltage, RPM and battery consumption) can be stored in real time with the data log


  • Motor Type - Sensored / 2-4 Pole Sensored
  • Motor Limit - 2650kv
  • Operating voltage - 6v- 26v
  • Forward / Brake / Reverse
  • Full aluminum heatsink
  • Rated Current per phase - 200A 5200watts Max
  • Plugged 30x30x10mm Fan
  • BEC Output - 5V-6.5V Continuous Current of 6A
  • Multi-Protection-System
  • “Boost 0” Mode
  • Multi-frequency system -
  • Power Wires - 10Awg
  • Over the air Update ability - yes
  • Case Size(with out fan) - 45.5mm (w)  x 59mm (l) x 26mm (h)
  • Weight(with out cable) -178g

     Wireless adapter is necessary to make setting changes to this ESC, the program box doesn't work for the Digital-3 Super Stock
